Overhead Fiber Optic Cable Downlead Clamp For OPGW

Product Categories
FUZHOU HC IMPORT AND EXPORT CO.,LTD
Contact Now

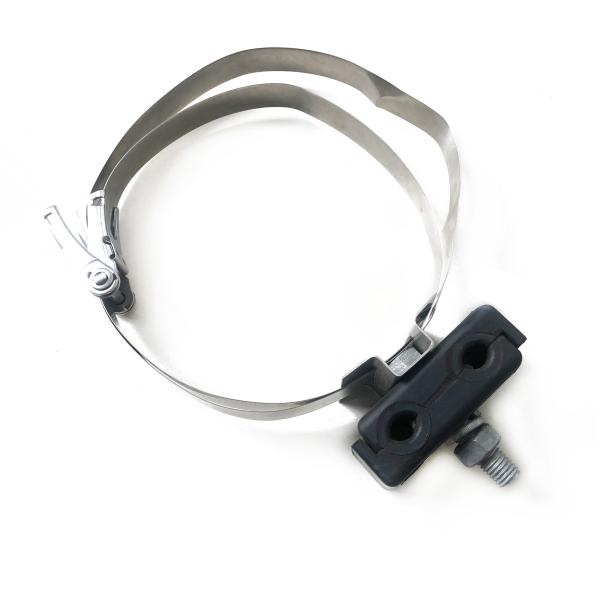

Overhead Fiber Optic Cable Downlead Clamp For OPGW

  • 1
  • 2

Brand Name : HC , OEM

Model Number : BK412

Certification : CE , SGS , ISO2001

Place of Origin : CHINA

MOQ : 100PCS

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 5000 Sets Per day

Delivery Time : 7 days

Packaging Details : Cartons , Wooden Case , Pallets

Advance : Light Weight

Feature : Against Rust And Corrosion

Usage : For Pole , For Tower

Material : Rubber , Hot Dip Galvanized Steel

Min Length : 1.5m

Diamention : 9mm-24mm

Contact Now

Overhead Fiber Optic Cable Fittings Down Lead Clamp For Tower/Pole

Packaging Details

packing: Inner Plastic Bag + Wooden box/Carton or as your requiry

Port: China Port

Lead Time:

Quantity(Pieces) 1 - 50000 50001 - 100000 >100000
Est. Time(days) 7 15 To be negotiated

Product Description

Down Lead Clamp is designed to lead down cables on splicing and terminal pole/tower and to fix the arch section on the middle reinforcing pole/tower. Normally, a unit of Down Lead Clamp is needed 1.5 meters, and it is also used in other fixing area.

Advantage:
1. Light weight
2. Easy to install
3. Hight Quality
4. Against corrosion, can be used for a very long time
5. Warranty & Long life
6. Hot dip galvanized surface tratment, against rust and corrosion
7. A large space. Meet the minimum radius of curvature

Overhead Fiber Optic Cable Downlead Clamp For OPGW

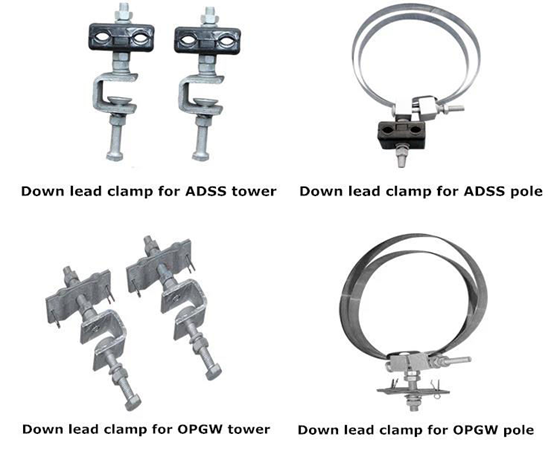

There are 2 types of down lead clamp for pole and tower mounting.

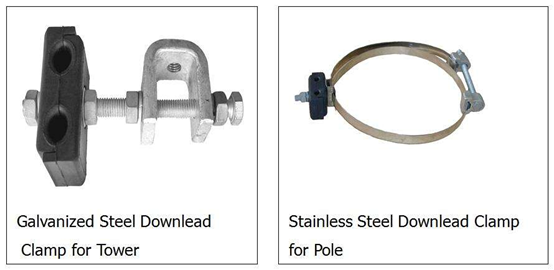

POLE TYPE: stainless steel + rubber

TOWER TYPE: Galvanized dip hot

Overhead Fiber Optic Cable Downlead Clamp For OPGW

Item Specification Applicable cable diameter Ref.Weight(kg) Note
Down load clamp for pole DLC-1110 9.0-11.1 0.85 Using for ADSS
DLC-1330 11.2-13.3 0.85
DLC-1550 13.4-15.5 0.85
DLC-1800 15.6-18.0 0.85
Down lead clamp for pole ODLC-310 8.5-24.0 0.85 Using for OPGW
Down load clamp for tower TDLC-1110-*** 9.0-11.1 0.95 Using for ADSS
TDLC-1330-*** 11.2-13.3 0.95
TDLC-1550-*** 13.4-15.5 0.95
TDLC-1800-*** 15.6-18.0 0.95
Down lead clamp for tower TDLC-240-*** 8.5-24.0 0.95 Using for OPGW
